mSATA Adapter, ELUTENG mSATA to USB 3.0 Adapter, USB mSATA SSD Reader, 50mm Mini SATA Converter as Portable Flash Drive External Hard Drive (No Cable Needed)

This mSATA to USB 3.0 adapter is suitable for those mSATA SSDs that have been eliminated after upgrade. It can be used as a USB flash drive to expand your external storage space for your Laptops or desktop computers.

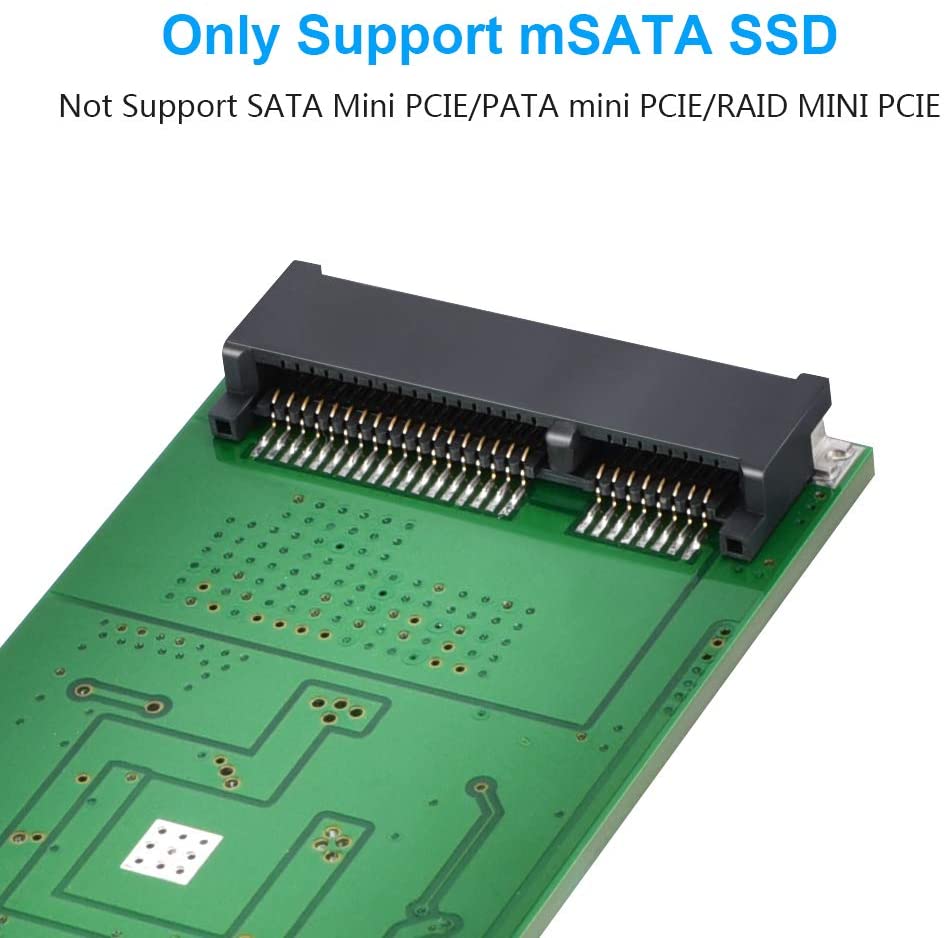

Note: This adapter card only supports mSATA SSD (3cm*5cm), and does not support SATA Mini PCIE/PATA mini PCIE/RAID MINI PCIE SSD. Only fit for SSDs with current less than 1.5A. If it is a new hard disk, please format it before use, otherwise it may not be recognized by the computer.

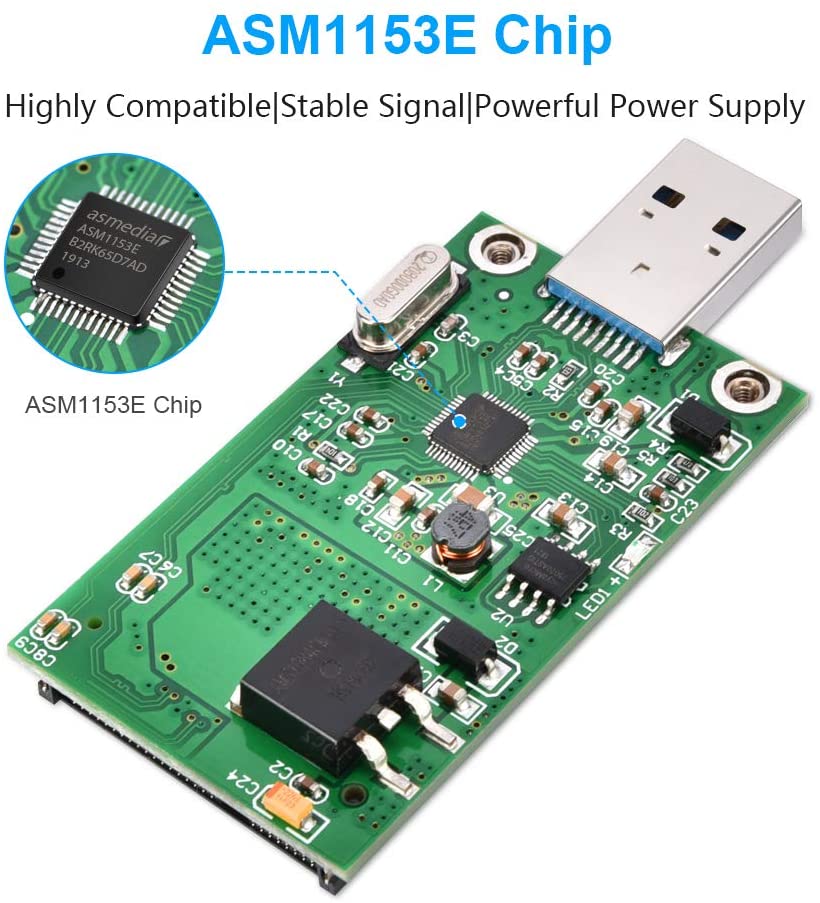

Adopt ASM1153E chip, Great compatibility, it supports 512GB SSD and all major platforms with great stable signal and powerful power supply.

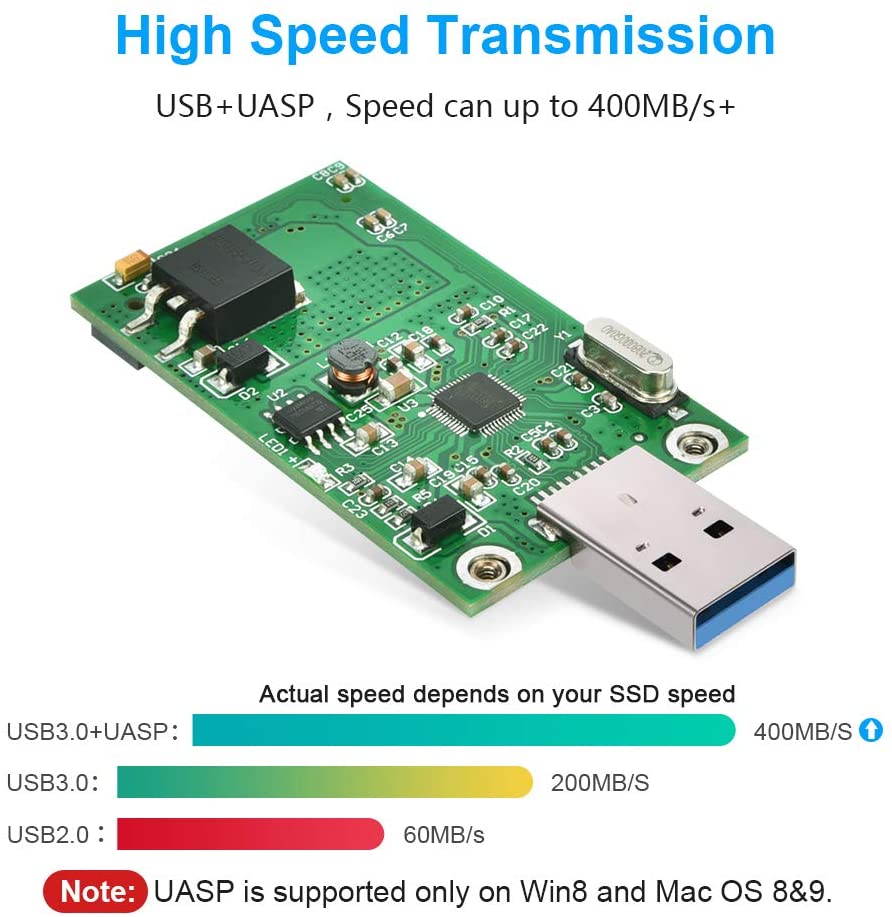

USB3.0 read and write speeds up to 200Mb/s +; Read and write speed with UASP can up to 400Mb/s +. Note: To achieve UASP acceleration, please make sure that your computer supports UASP. Currently, UASP-enabled systems include Win 8 and Mac OS 8&9 (the actual speed depends on your SSD speed.

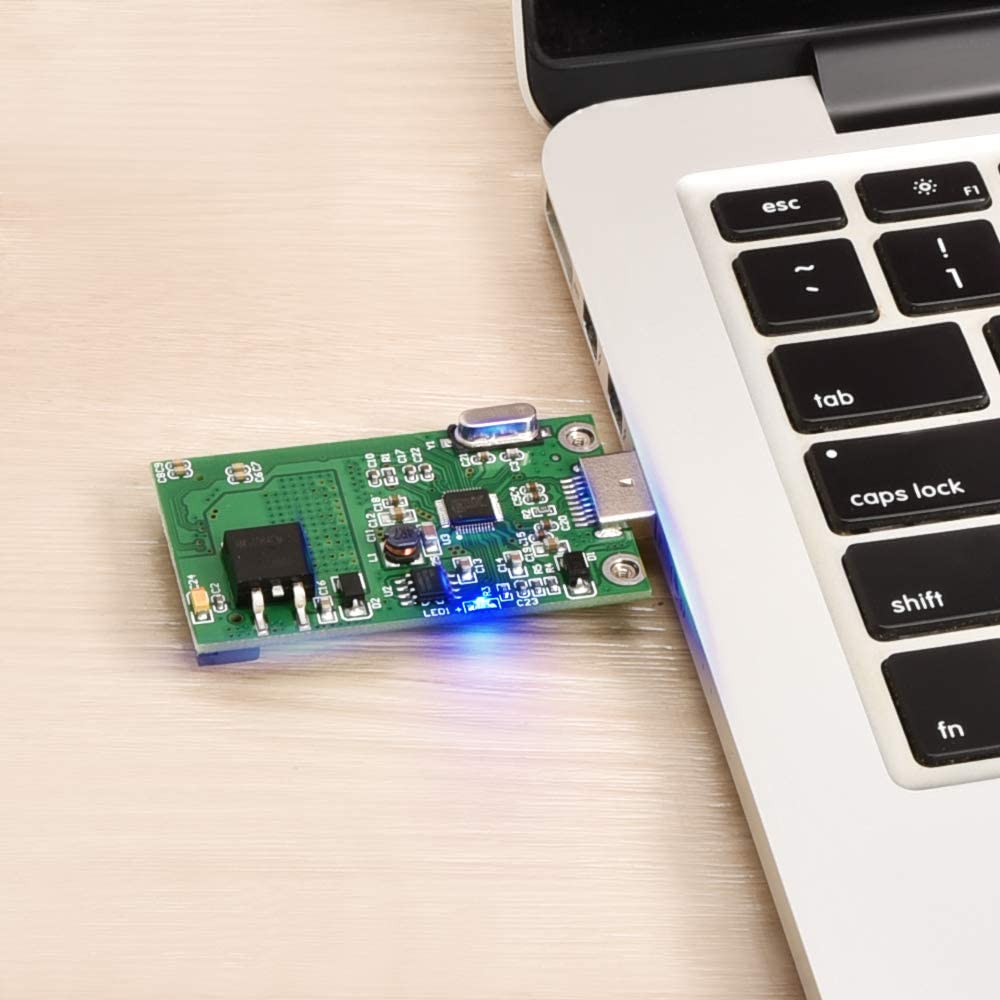

Directly plugged into the USB port of the PC, no USB cable is needed, the loss is reduced, the signal becomes more stable, and the power supply is more powerful.

Go to Amazon

Technical Details
Brand name ELUTENG
Item Weight 1.44 ounces
Package Dimensions 6 x 4 x 0.7 inches
Date First Available July 28, 2019
5 Star
4 Star
3 Star
2 Star
1 Star


Warm Tips:

1. Only mSATA 30*50mm SSD hard drives are supported.

2. SATA Mini PCIE/PATA mini PCIE/RAID MINI PCIE SSD is NOT supported.

3. Only suitable for SSDs with current less than 1.5A.

4. Please format the new hard disk before use, otherwise it may not be recognized by the computer.

5. If you have any installation problems, please feel free to consult us.

Specification:

Chip: asm1153E

mSATA interface: 8+18PIN

USB interface: support USB3.0 interface, backward compatible with USB2.0

Reading speed: 200M/S (USB3.0); 400M/S (USB3.0+UASP)

Size: 72mm (L) x 35mm (W) x 10mm (H)

Working temperature: 0°C -70°C

Features:

* Compliant with USB 3.0 specifications

* Backward Compatible to USB 2.0 specifications

* Hot-swappable

* Plug and Play

Package:

mSATA to USB 3.0 adapter card ×1

Screw ×2
