Hard Drive Accessories / M.2 Enclosures

ELUTENG M.2 NVMe SSD Enclosure, USB 3.1 Gen2 M2 PCIe NVMe Adapter 10Gbps Transfer Rate Support UASP for M-Key & M+B Key NVMe SSD 2230 2242 2260 2280 with USB-C & USB-A Cable, Thermal Pads

【USB C to NVMe SSD Enclosure】Only applicable to NVME M-Key M.2 SSD (based on PCI-E), suitable SSD sizes include 2230 / 2242 / 2260 / 2280, support Windows / Linux / Mac OS, storage up to 2TB. *************NOTE: Before using the new hard drive, please initialize it first, otherwise it may not be recognized by the computer.*************

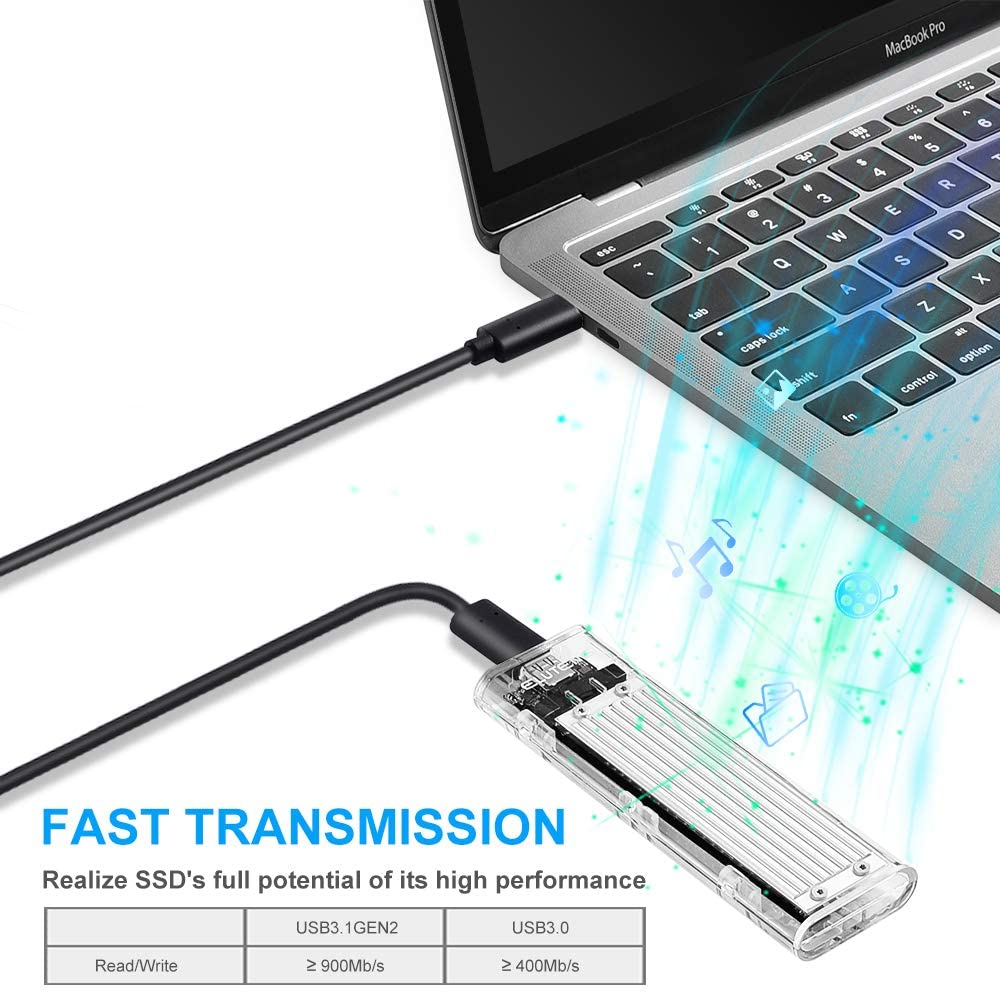

【Stable & High Speed】This enclosure uses the JMS583 host controller supported by UASP and Trim, with the latest USB 3.1 Gen 2 Type-C port, it supports data transmission speeds up to 10 Gbps, read and write speeds up to 950+ Mb / s. The actual reading speed will be affected by the device interface and working environment. When connected to a USB 2.0 interface, only USB 2.0 speeds can be reached.

【User-friendly Design】The transparent shell can easily identify the internal SSD; the aluminum alloy plate on the other side reduces the accumulation of heat; 10 minutes of automatic sleep to promote the heat dissipation of the SSD and extend the life; LED lights check night working status.

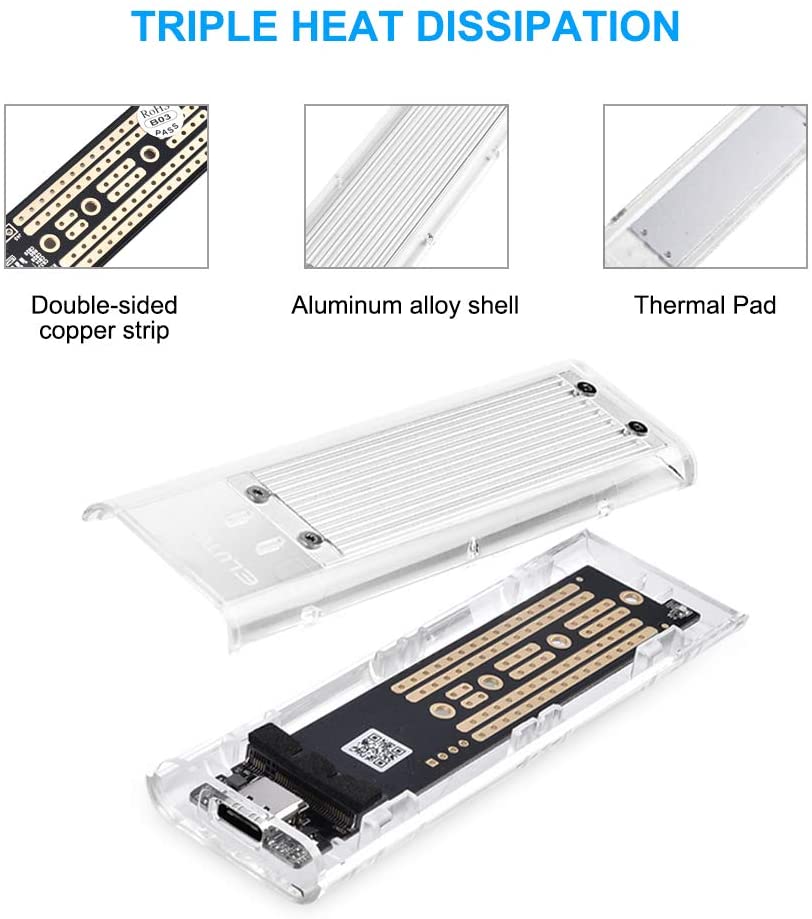

【Triple Cooling】Double-sided copper strip, porous heat dissipation, to ensure stable operation; aluminum alloy fin-fin heat dissipation strip, increase heat conduction area; built-in heat dissipation silicone grease pad, quickly dissipates heat.

Easy to Use】The tool-free design allows easy opening of the case, making it easier to install than other traditional NVME hard disk enclosures, and the M.2 NMVe SSD can be quickly and easily installed with the included screwdriver. Comes with USB C to A cable and USB C to C cable, which makes connection easier!

Go to Amazon

Technical Details
Brand name ELUTENG
Item Weight 109 g
Date First Available 13 Feb. 2020
5 Star
4 Star
3 Star
2 Star
1 Star

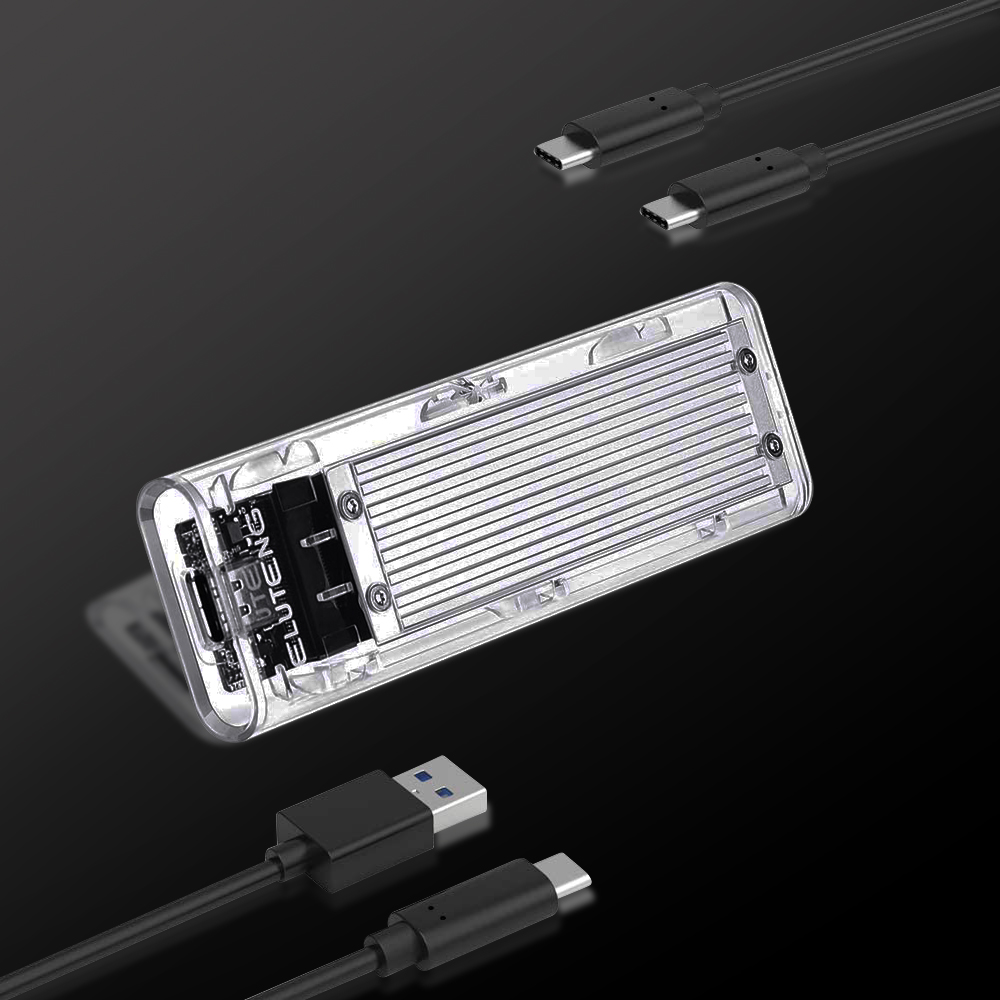

ELUTENG Transparent USB 3.1 Gen2 Type C NVMe M.2 SSD Enclosure

for data copying and transmission, easy to view internal SSD.


Warm Tips:

1. Only support M.2 NVME M Key interface hard drives, NOT support any SATA / PCIE AHCI protocol hard drives.

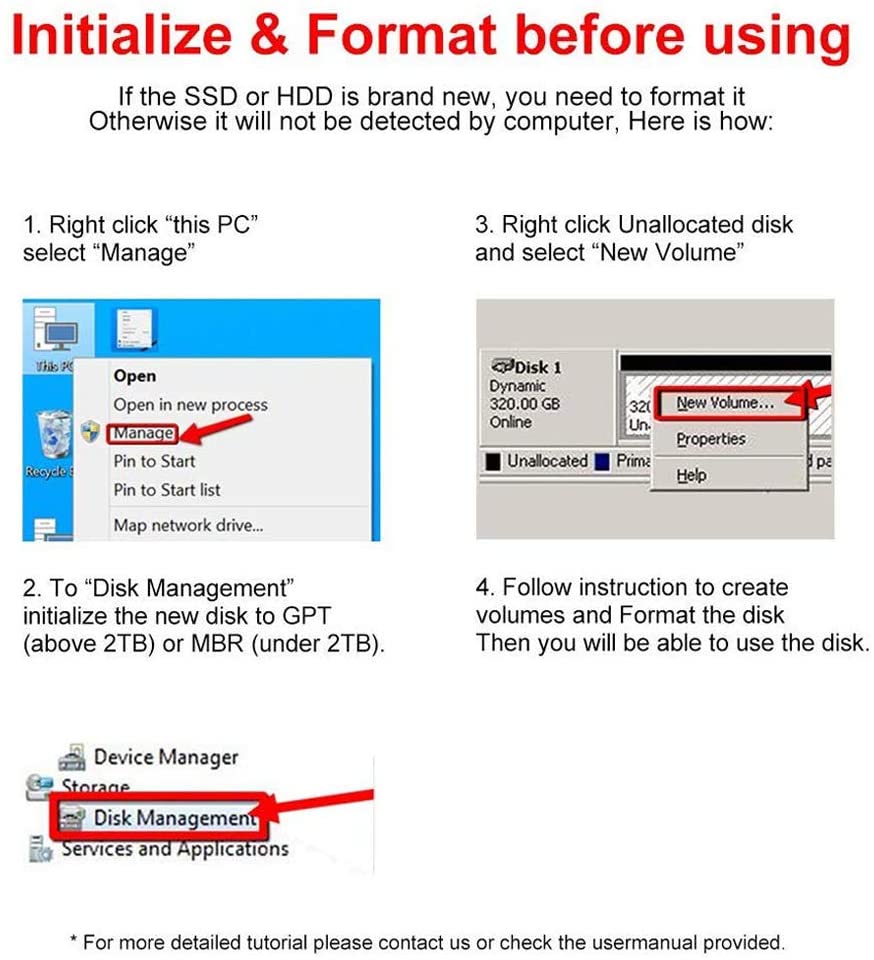

2. Before using the new hard drive, please initialize it first, otherwise it may not be recognized by the computer.

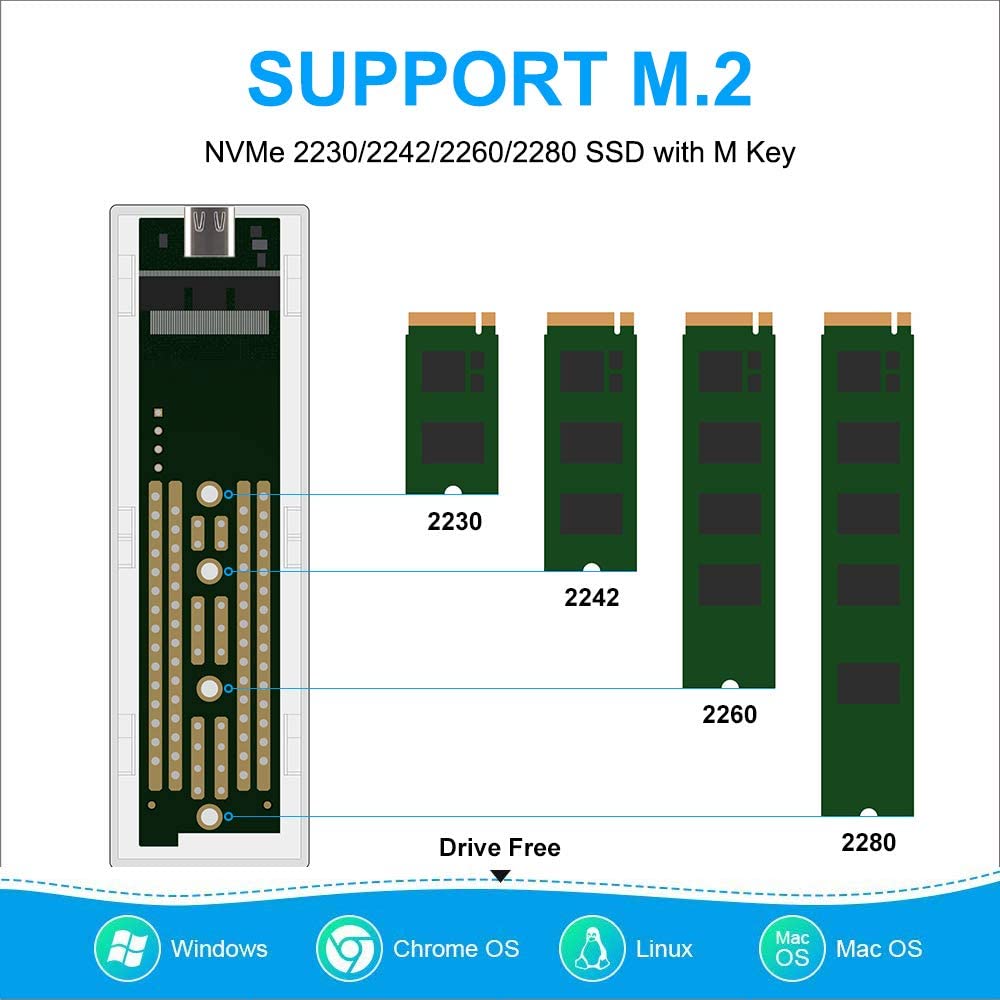

3. Only supports SSDs of 22x30 / 22x42 / 22x60 / 22x80 mm.

4. Currently, UASP-enabled systems are WIN8 / WIN10 / MAC OS 8 & 9 and above. The use of UASP requires that the computer also supports UASP function. Different computers, different operating systems, and different hard drives may have different transmission performance.

5. When connected to a USB 2.0 interface, only can be reached USB 2.0 speeds.


Specification

Product Material: Transparent PC + aluminum alloy

Product Color: Silver

Main Control Chip: JMS583 (10Gbps)

Output Interface: USB3.1 Type-C

Transmission Rate: USB3.1 GEN2 10Gbps

Supported Capacity: up to 2TB

Supported System: Windows / Mac OS / Linux

Installation: Screw fixing

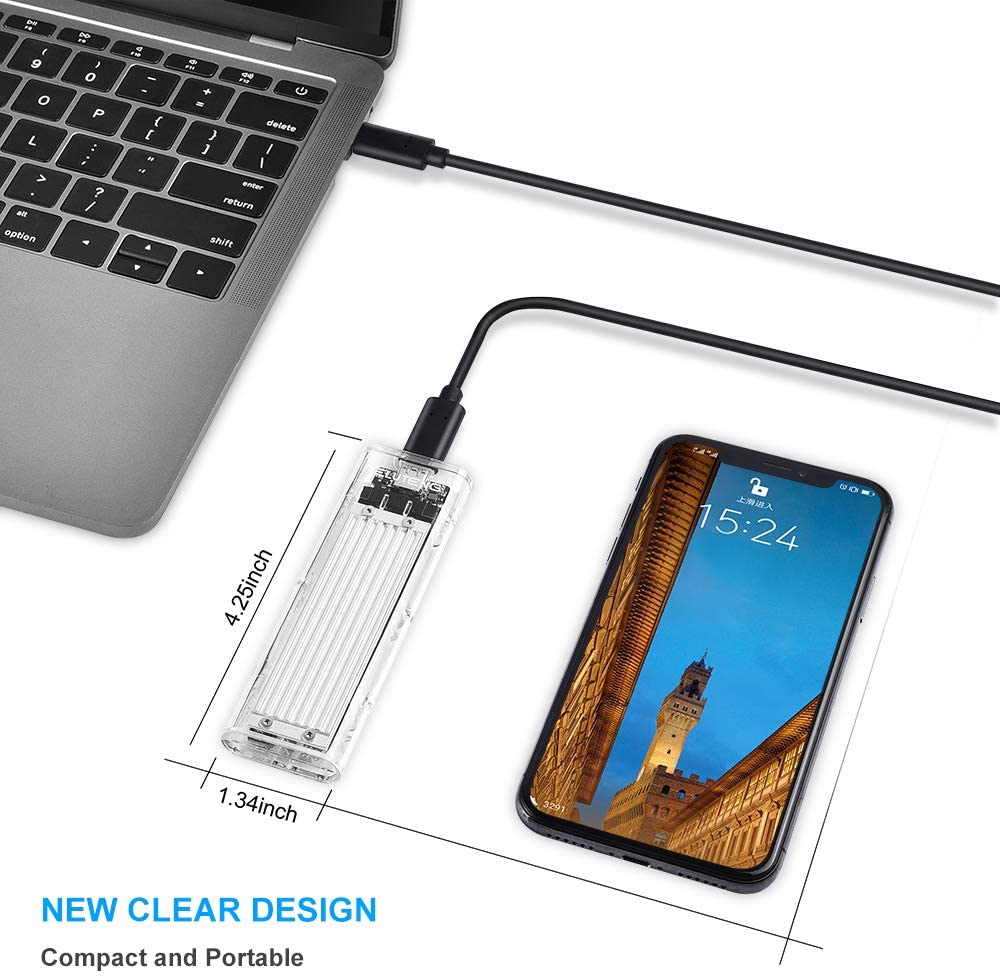

Product Size: 108mm * 34mm * 11.5mm

Weight: 39g


Packing List:

1 * ELUTENG transparent NVMe SSD Enclosure

1 * USB C to USB C Cable

1 * USB-A to Type-C Cable

1 * Thermal Pad

1 * Screw Set
